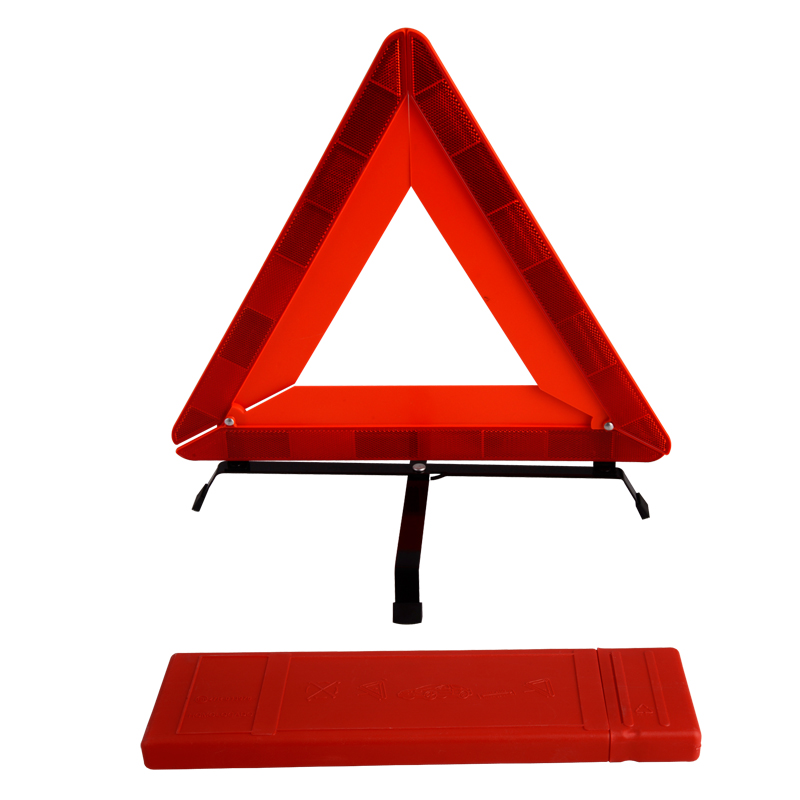

Roadside Emergency Warning Triangle
Specifications:
1. Reasonable structure: Folding structure ,easy to onboard
2. Stability: Some support the use of the cross,wind resisyance,to adapt in a variety of environment
3. Toleranted: The reflector mirror add antioxodants,with rain,dust,temperature and other functions

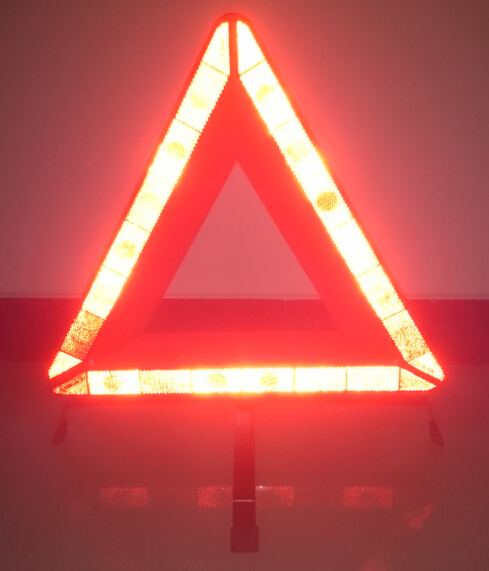

4. High visibility: Reflective surface of high transmittance,high brightness of raw materials.
| Traffic warning triangle | SS-WT02 |
| Material | GPPS+HIPS |

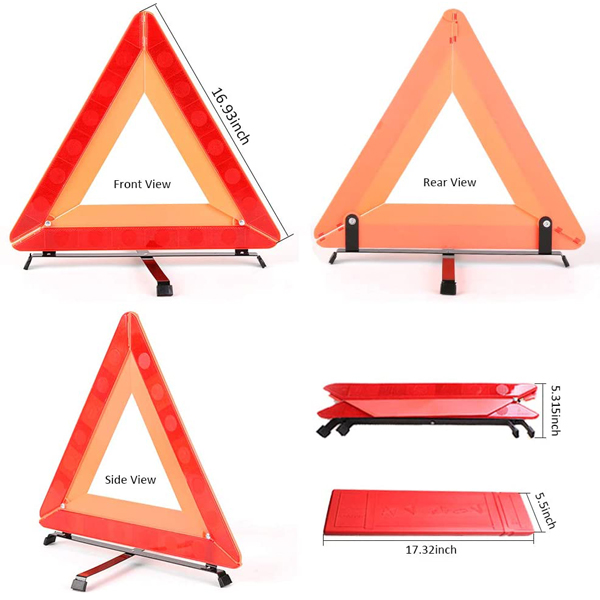

| Product Size | 43*43*43CM |
| N.W | 540g±10g |
| G.W (Include Box) | 690g±10g |
| Packing | PP bag packing for unit+plastic box |
| Out Carton | 40pcs in a carton |
| 1*20ft Container to load | 14400Pcs |
| 1*40ft Container to load | 35000Pcs |

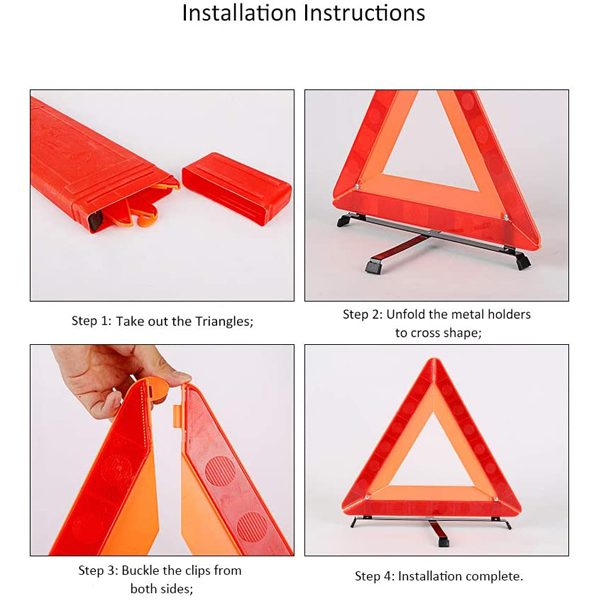

INSTALLATION INSTRUCTION
Before using warning signs,you must first open the hazard lights,and put warning triangle behind the vehicle on the back of the car with 30 to 100 meters
To extend product life,when warning signs are not used,please fold the reflector and supporting put them inside the plastic protective case
Products in the transportation and stprage,need be taken care that avoiding the falling
Opening steps
1. The warning triangle will be removed from the plastic case ,face to face their own reflection,press as the arrow shown in Figure1, the left and right mirror are slowly of patchwork opened,refer to the next state in Figure 2
2. The right hand holding a mirror.left mirror left hand slowiy downward pressure,as shown in Figure 3 the arrow has been pressed in the end the following figure 4
3. Open the bracket,as shown in Figure 4 the arrow to open slowly to stand 90 degrees,as Figure 5 bucket state at this time warning triangle has been completely opened,you can use a horizontal surface
Folding steps
1. Facing to the warning triangle
2. Picking up the bracket,as shown in Figure 1 ,slowly away to the next bracket as Fifure
3. With the left hand holding the left mirror,with the mirror slowly being forced to the right down with the pressure(as shown in Figure 3),has been pressure in the end,as Figure 4 status,and then slowly pressing down the left reflector,as figure 5
4. Put the warning triangle inside of the case for next time using.
We are professional manufacturer of automotive warning triangle and auto safety kits. The warning triangle explored by our company according to ECE27R European requirements and we also got certificate of E-MARK. Our market is global and we have exported to Italy, UK, Germany, South Africa and so on.
Our company is operating with the quality ensure system of ISO 9000. It's business objectives are: First-class brand, build first-class enterprise. The company has a complete and scientific quality management team. Company produces a variety of products strict quality control, with strength and quality of products recognized by the industry.
OEM and ODM is acceptable, welcome you contact us.
FAQ
1) What is MOQ?
Usually, the MOQ is 3000 PCS, According to the value of the product
2) Can I get the sample?
Yes ,we can send you the sample,but express fee will be on your account for the customer of first time cooperation.
3)What is the package ?
Usually , each PC in color box or plastic box.some product in handle box.If you have special request , we will satisfy your need .
4)Can I print my logo on the handle of goods?
Of course , customer imprinting is available just send your logo design.
5) What is the payment ?
Usually,30% of total amount as deposit and balance payment will be paid against copy of BL
6) What is the delivery time ?
30 days after receiving advanced payment
7)Shipping port?
Ningbo
We could choose your interested items together in showroom, welcome to contact me and visit our factory.
